Mini-Excavator Hydraulic Repair

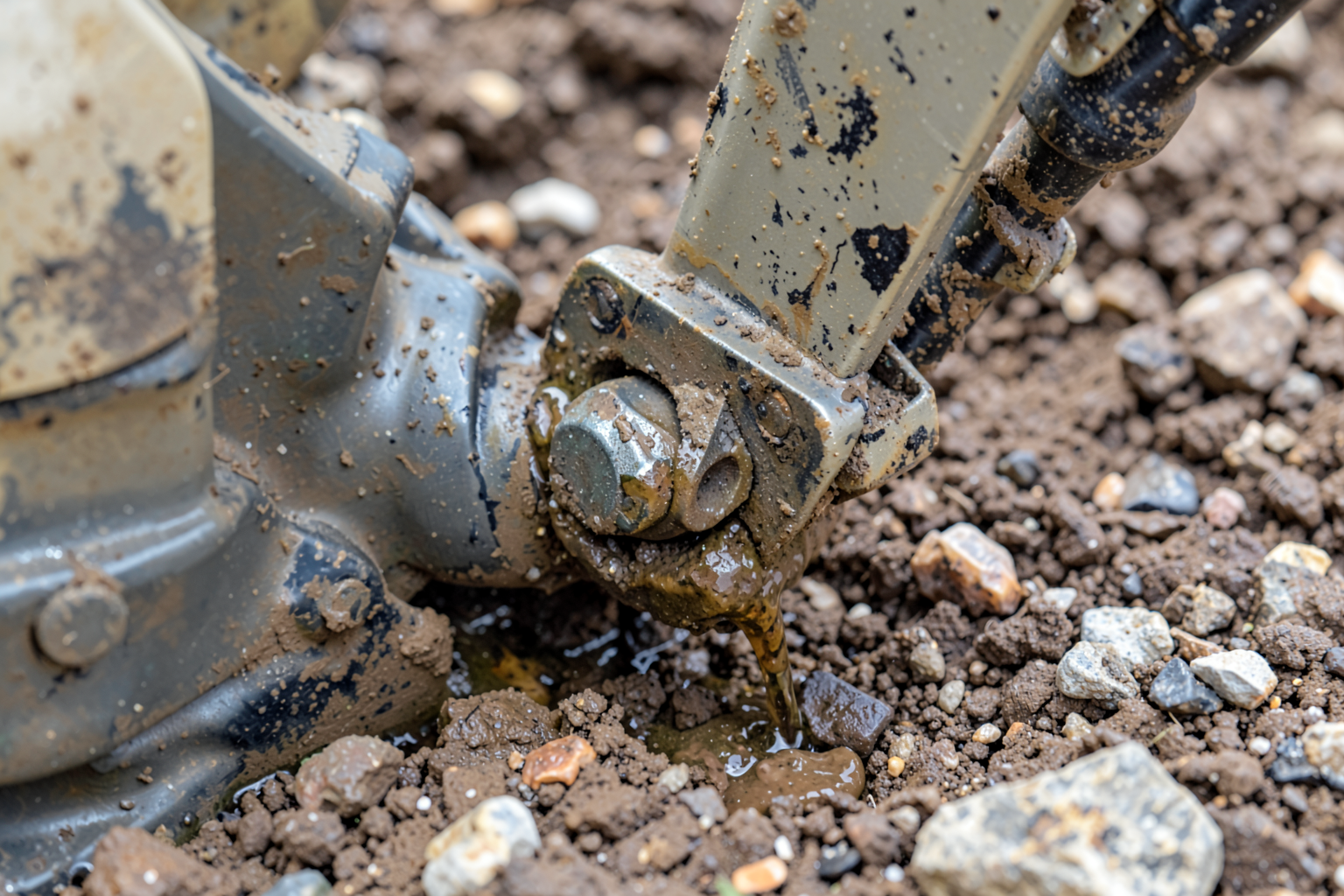

Mini-excavator hydraulic systems consist of a central pump (gear, vane, or piston type), valve blocks, lines, cylinders, and return filters. Failures range from rod-end seal leaks and burst hoses to control valve spool sticking and pump cavitation. Hydraulic leaks are often visible as wet spots or dripping fluid under the boom, bucket, or swing assembly. Loss of function in a circuit is diagnosed by checking line pressure, system relief settings, and cylinder travel. Atlas performs in-field hose fabrication with SAE, JIC, and metric fittings, ensuring OEM pressure rating and routing. Cylinder reseal jobs involve rod removal, measuring seal grooves, and installing new V-packs or U-cups, then verifying with a pressure test to 3,000 psi+. Pump issues are confirmed with pressure and flow checks using diagnostic gauges at test ports. Imported and off-brand mini-excavators often require custom hoses without dealer part numbers and field adaptation at the valve block. Field repairs minimize downtime and remove transport logistics, especially for inoperable machines on sites with tight access or soft ground. A comprehensive job includes fluid top-off with spec-checked oils, air bleed from the lines, and operational testing under load.
